德斯科技术（南京）有限公司

EDI工业标准型产品

EDI Industrial standard product introduction

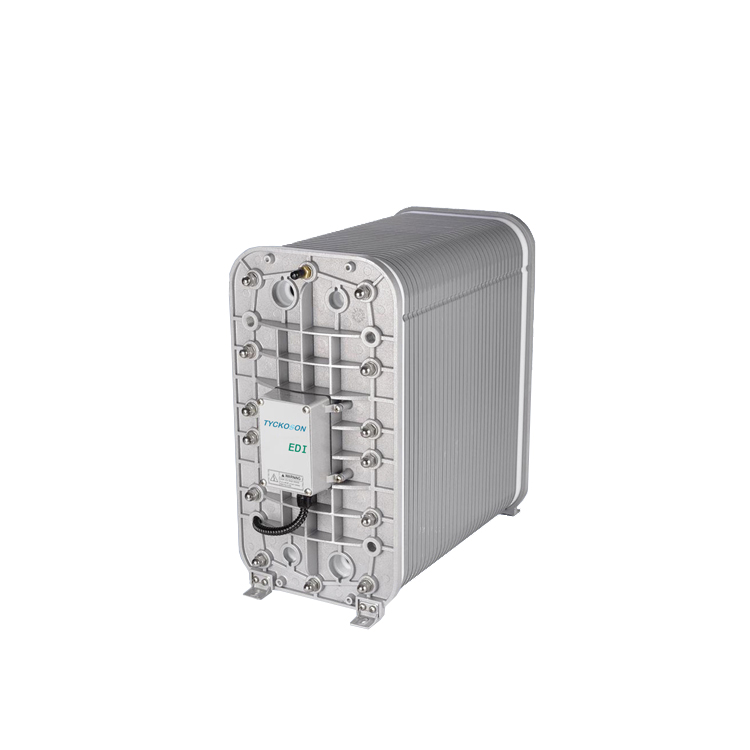

TYCK-EDI

发布时间：2024-06-10

Release time:2024-06-10

TYCK-EDI

EDI Industrial standard product introduction

产品分类 Products
Classification

全部分类 Show All

水质分析仪表 Water quality analysis instrument

SDI分析仪产品 SDI Analyzer

总有机碳（TOC）产品 TOC Analyzer

滴定法分析仪 Titration Analyzer

比色法分析仪 Colorimetric Analyzer

实验室&便携仪表 Lab & Portable products

EDI连续电除盐系统 EDI-Electro deionization

滤芯 Filter element

药剂 Chemical

阻垢剂 scale inhibitor

清洗剂 cleaning agent

杀菌剂 sterilizing agent

实验室水质分析检测 Laboratory water quality analysis

智能型阻垢装置 Intelligent limescale inhibitor solution

产品介绍 product presentation

技术参数 technical specification

下载 download

订购指南 ordering guide

1、技术成熟，产水品质高:EDI 产品于七十年代投入商业化应用，目前已拥有四十多年的发展历史，早先应用于电子半导体行业的超纯水深度除盐工艺中，此后逐步推广到其它行业的纯水工艺

2、系统集成化程度高，运行稳定:BDI 是模块化撬装系统，集成紧凑，自动化程度高，维护少，占地省。单个模块产水量大，由直流电驱动产生高品质产水，水质稳定，运行仅需电耗，长期稳定运行，满足除盐水品质。

3、脱盐能力好，运维简单便、节能:EDI 运行不需要酸碱等化学品消耗，无酸碱废水处理的场地占用和设施操作，运行只有电费，系统综合成本低，脱硅效果好: Si0:平均去除率达 97%以上。

4、技术先进、环保节能、市场应用业绩多:四十余年应用历史，大型的 EDI脱盐水系统日益增多,数千吨每小时的除盐水项目应用屡见不鲜。普遍用于电力、电子、半导体、石化、医药、冶金、造纸、汽车等行业的超纯水制备储，同时 BDI是一种具有低碳环保优势的脱盐技术。

Mature technology and high-quality water production: EDI products were commercially introduced in the 1970s and have over four decades of development history. They were initially used in the ultrapure water desalination process in the electronic semiconductor industry and have gradually been extended to pure water processes in other industries.
High degree of system integration and stable operation: BDI is a modular skid-mounted system that is compact and highly integrated, with high automation, minimal maintenance, and small footprint. Each module has a large water production capacity, driven by direct current to produce high-quality water. The water quality is stable, and the operation only requires electricity consumption, ensuring long-term stable operation and meeting the quality requirements for desalted water.
Excellent desalination capability, simple and convenient operation, and energy efficiency: EDI operation does not require the consumption of chemicals such as acids and alkalis, eliminating the need for space and facilities for acid-alkali wastewater treatment. Operation only involves electricity costs, resulting in low overall system costs. It also has excellent desilication performance, with an average SiO2 removal rate of over 97%.
Advanced technology, environmental protection, energy conservation, and numerous market applications: With over four decades of application history, large-scale EDI desalted water systems are increasing. Applications of desalted water projects with a capacity of thousands of tons per hour are common. They are widely used in ultrapure water preparation in industries such as power, electronics, semiconductors, petrochemicals, pharmaceuticals, metallurgy, papermaking, and automobiles. Additionally, BDI is a desalination technology with low-carbon and environmental protection advantages.

EDI流量：m³/h

型号	TYCK-EDI 05S	TYCK-EDI 10S	TYCK-EDI 20S	TYCK-EDI 30S	TYCK-EDI 50S	TYCK-EDI 70S
运行流量	0.5～0.7	1.0～1.3	2.0～2.5	3.0～4.0	5.0～6.0	6.0～7.5
最小流量	0.24	0.61	1.1	1.83	2.76	3.1
最大流量	1.3	2.0	3.2	5.32	8.0	8.9

EDI电源（DC）：V/A

型号	TYCK-EDI 05s	TYCK-EDI 10S	TYCK-EDI 20S	TYCK-EDI 30S	TYCK-EDI 50S	TYCK-EDI 70S
设计电压V	0～200	0～200	0～350	0～350	0～500	0～500
运行电压V	10～80	20～120	30～150	40～200	60～300	80～350
设计电流A	0～6.0	0～6.0	0～6.0	0～6.0	0～6.0	0～6.0
运行电流A	1.0～2.5	1.0～2.5	1.5～3.5	1.5～3.5	2.0～4.0	2.0～4.0

EDI压力：（bar/psi)

型号

TYCK-EDI 05S

TYCK-EDI 10S

TYCK-EDI 20S

TYCK-EDI 30S

TYCK-EDI 50S

TYCK-EDI 70S

最大进水压力

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

运行压力

2.8～4.2

(40～60)

2.8～4.2

(40～60

2.8～4.2

(40～60

2.8～4.2

(40～60

3.1～4.5

(45～65)

3.1～4.5

(45～65)

淡水压降

1.5～2.5

(21～35)

1.5～2.5

(21～35)

1.5～2.5

(21～35)

1.5～2.5

(21～35)

1.6～2.8

(23～40)

1.6～2.8

(23～40)

浓水压降

1.0～2.0

(14～29)

1.0～2.0

(14～29)

1.0～2.0

(14～29)

1.0～2.0

(14～29)

1.1～2.3

(16～33)

1.1～2.3

(16～33)

典型性能参数：

回收率：90～95%

产水电阻率：≥16MΩ.CM

硅（SiO2)去除率：90～99%

注：实际产水性能指标，取决于进水条件。

EDI flow: m3/h

Model	TYCK-EDI 05S	TYCK-EDI 10S	TYCK-EDI 20S	TYCK-EDI 30S	TYCK-EDI 50S	TYCK-EDI 70S
Operating flow	0.5～0.7	1.0～1.3	2.0～2.5	3.0～4.0	5.0～6.0	6.0～7.5
Minimum flow	0.24	0.61	1.1	1.83	2.76	3.1
Maximum discharge	1.3	2.0	3.2	5.32	8.0	8.9

EDI power （DC）：V/A

Model	TYCK-EDI 05s	TYCK-EDI 10S	TYCK-EDI 20S	TYCK-EDI 30S	TYCK-EDI 50S	TYCK-EDI 70S
Design voltage V	0～200	0～200	0～350	0～350	0～500	0～500
Operating voltage V	10～80	20～120	30～150	40～200	60～300	80～350
Design current A	0～6.0	0～6.0	0～6.0	0～6.0	0～6.0	0～6.0
Running current A	1.0～2.5	1.0～2.5	1.5～3.5	1.5～3.5	2.0～4.0	2.0～4.0

EDI pressure：（bar/psi)

Model

TYCK-EDI 05S

TYCK-EDI 10S

TYCK-EDI 20S

TYCK-EDI 30S

TYCK-EDI 50S

TYCK-EDI 70S

Maximum inlet pressure

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

6.6

(95psi)

Operating pressure

2.8～4.2

(40～60)

2.8～4.2

(40～60

2.8～4.2

(40～60

2.8～4.2

(40～60

3.1～4.5

(45～65)

3.1～4.5

(45～65)

Fresh water pressure drop

1.5～2.5

(21～35)

1.5～2.5

(21～35)

1.5～2.5

(21～35)

1.5～2.5

(21～35)

1.6～2.8

(23～40)

1.6～2.8

(23～40)

Concentrated pressure drop

1.0～2.0

(14～29)

1.0～2.0

(14～29)

1.0～2.0

(14～29)

1.0～2.0

(14～29)

1.1～2.3

(16～33)

1.1～2.3

(16～33)

Typical performance parameters:

Recovery rate: 90 ~ 95%

Water production resistivity: ≥ 16mω.cm

Silicon (SiO2) removal rate: 90 ~ 99%

Note: The actual water production performance index depends on the water intake conditions.
